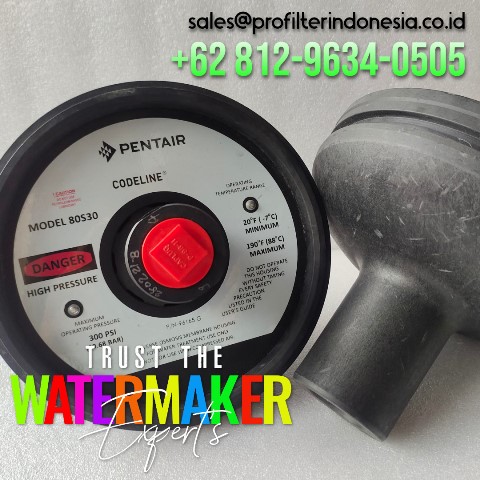

CodeLine 80S30-1 RO Membrane Housings FRP

Kami adalah importir distributor agen dan supplier CodeLine 80S30-1 RO Membrane Housings FRP terlengkap menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan kualitas dan harga terbaik.

Dalam industri pengolahan air, teknologi Reverse Osmosis (RO) menjadi salah satu metode yang paling efektif untuk menghasilkan air bersih dan berkualitas tinggi. Salah satu komponen kunci dalam sistem RO adalah RO membrane. Untuk melindungi dan mendukung kinerja RO membrane, diperlukan sebuah housing yang kuat dan tahan lama, yaitu FRP Housing.

Info lengkap produk Housing Membrane.

Description CodeLine 80S30-1 RO Membrane Housings FRP

FRP (Fiberglass Reinforced Plastic) Housing adalah wadah atau pelindung yang terbuat dari material komposit yang menggabungkan serat kaca dengan plastik. Material ini terkenal karena kekuatannya yang tinggi, daya tahan terhadap korosi, serta ringan dibandingkan dengan material logam seperti baja atau stainless steel.

Codeline membrane housings are designed to meet the demands of cost effective, continuous, long term use of any type of commercial and industrial water processing.

The vessels are made up of fibre reinforced expoxy/glass composites and can accommodate up to 8 membrane elements with a wide range of operating pressure at 150 psi, 300 psi, 450 psi, 600 psi, 1000 psi & 1200 psi.

Codeline vessels are highly compatible for using in brackish, high brackish and seawater applications.

Membrane housings with 8” and 4” diameter are most common in use throughout the world in various projects.

CodeLine membrane housings are built to maximize the performance of your water purification systems. For over 3 decades, CodeLine pressure vessels have been used in critical & demanding applications Desalination, Reverse Osmosis, Nanofiltration & Ultrafiltration.

Codeline Housing Models

8-INCH SIDE ENTRY - 80S

Codeline 8-inch side entry membrane housings are available in a wide operating pressure range from 150 to 1200 psi.
Codeline’s multi-port feature allows vessel-to-vessel connection, which minimizes costly manifolds.
80S Series – Available with side-port options of 1.5, 2.0 and 2.5 inch IPS grooved

8-INCH END ENTRY – 80E

Codeline 8-inch end entry membrane housings are available in operating pressures of 300, 450, 600, 1000 and 1200 psi.

4-INCH SIDE ENTRY – 40S

Codeline 4-inch side entry membrane housings are available in operating pressures of 300 psi, 450 psi, and 600 psi.
The multi-port feature in 4-inch Codeline membrane housings allows vessel-to-vessel connection, which minimizes costly manifolds.

4-INCH END ENTRY – 40E

Codeline 4-inch end entry membrane housings are available in operating pressures of 300, 600 and 1000 psi.
These housings accommodate any standard 40-inch long membrane.
