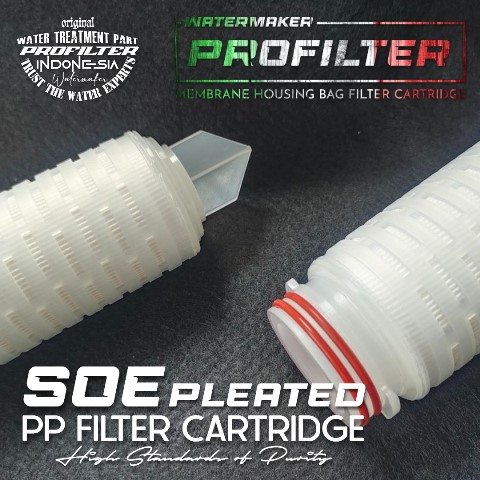

Pleated Filter SOE 222 Flat

Kami adalah importir distributor agen dan supplier PP Pleated Filter SOE 222 Flat terlengkap menyediakan berbagai kebutuhan spare part filter untuk keperluan industry dengan kualitas dan harga terbaik.

PFI Filtration pleated filter cartridges are one of our most popular solutions for achieving exceptional filtration performance in Industrial, Life Sciences and Water applications.

Overview PP SOE Pleated Filter Cartridge

Polypropylene filter cartridges are precisely manufactured for usage in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries.

Polypropylene pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micron ratings, high flow rates, and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter creates a gradient density matrix, ranging from open on the outside to finer on the inside, thereby providing a filter within the filter, which considerably increases contamination holding capacity & throughputs.

All components used in the manufacturing process are biologically safe, chemically inert and meet FDA and other international quality ments. Polypropylene offers extremely broad chemical compatibility making it suitable for many applications.

Feature and Benefits

All polypropylene construction
Absolute & nominal efficiency
Micron ratings 0,1 until 10 µm
Gradient density micron fiber media
High surface area more than 0.5 m² per 10″ filter
Robust outer cage
Biologically safe
Wide chemical compatibility
No fiber migration
Thermally welded construction
FDA approved filters
End connections to fit all standard housings

Specification

Construction Materials

Filtration Media: Polypropylene
Support Media: Polypropylene
End Caps: Polypropylene
Center Core: Polypropylene
Outer Support Cage: Polypropylene
O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone

Operating Conditions

Change Out ΔP (recommended) 35 PSID
Temperature (max) 176^oF (80^oC)
Differential Pressure (max) 60 PSID (4.1 bar) at 68^o˚F (20^oC)

Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized

Sanitization/Sterilization

Filtered Hot Water: 80^oC for 30 min.
Steam Sterilization: 121 ̊C for 30 min., multiple cycles
Chemicals: Cartridges are compatible with most chemical sanitizing agents.

Note: Stainless steel insert option d for all cartridges being hot water sanitized or steam sterilized.

Dimensions

Length: 10 to 40 inches ( 25.4 to 101.6 cm)
Outside Diameter: 2.70 inches
Micron size: 0,2 µm until 10 µm
Configuration
- Double Open Type (DOE Type)
- 226 O’ Ring Design / Bayonet
- 226 O’ Ring Design / Flat
- 222 O’ Ring Design / Bayonet
- 222 O’ Ring Design / Flat
